Thickness Gauge with Touchscreen

Thickness Gauge with Touchscreen

Dickenmesser mit umfänglicher Touchscreen Bedienung
Dickenmesser mit umfänglicher Touchscreen Bedienung

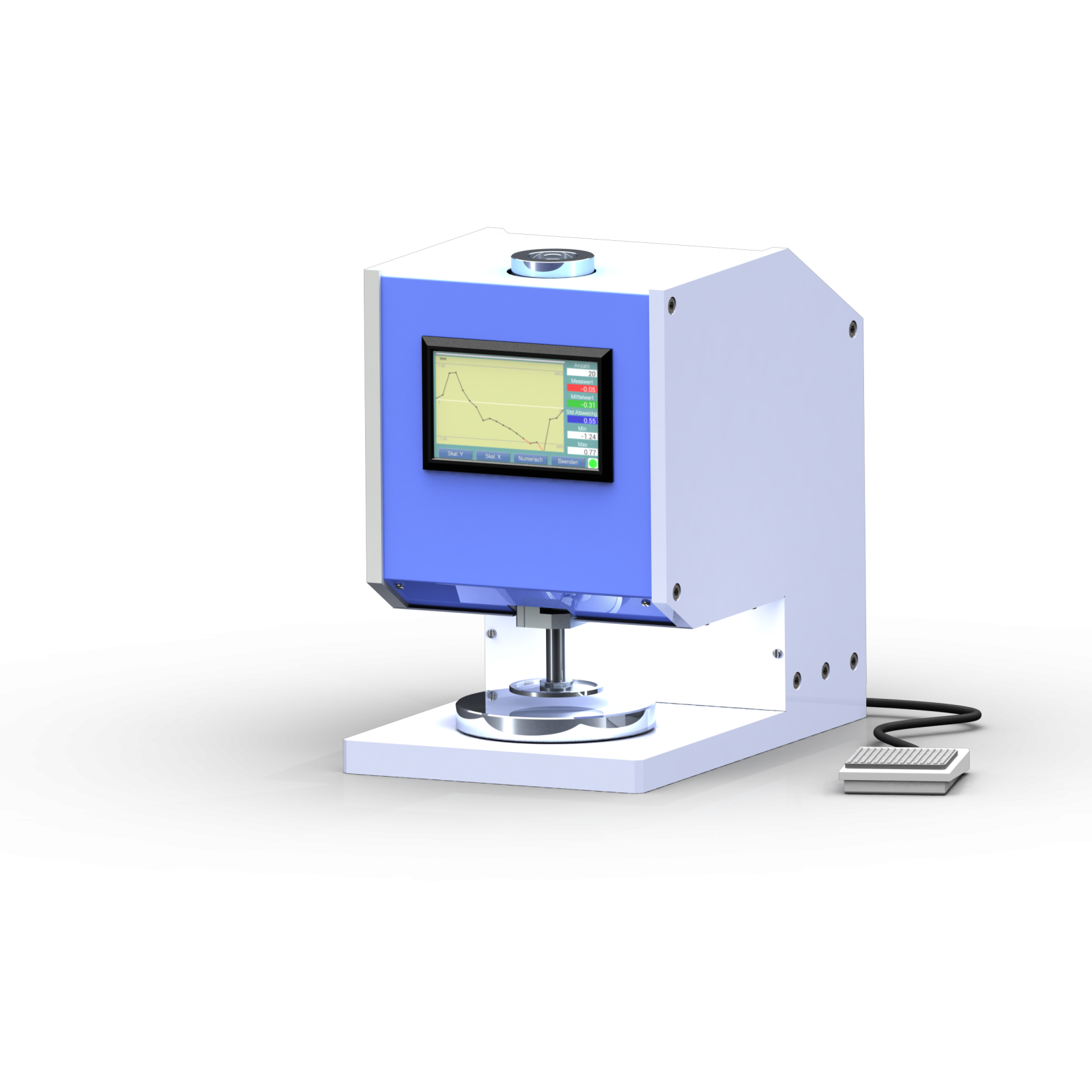

DM-2010

Thickness gauges for determining the thickness of all types of flat materials. The devices comply with the well-known DIN, EN, and ISO regulations used for measuring the thickness of textiles, nonwovens, geomaterials, paper, floor coverings, leather, foils, and rubber.

Thickness measurement according to international standards DIN, EN and ISO

This reliable thickness gauge has an electronic lowering of the measuring plunger. The device is operated via the touch panel.

Request offer Data sheet

Industry standard

  • DIN 53105
  • DIN 53353
  • EN 20534
  • ISO 3034
  • ISO 534
  • P31
  • SCAN P7
  • Measuring range: 0 - 10 mm, option 25 mm
  • Resolution: 0.001 mm
  • Accuracy: ±0.002 mm
  • stirrup depth: 160 mm
  • Measuring system: capacitive -> Sylvac
  • Display: graphic display with touch screen
  • Measuring units: mm or inch (switchable)
  • Stroke in mm: Level 1 = 2.0, Level 2 = 3.5, Level 3 = 5.0, Level 4 = 6.5 and Level 5 = 10.5 mm (full measuring range)
  • Dwell time: 1 - 60 seconds
  • Number of measurements: up to 50 per measurement series
  • Test area and surface pressure: according to international standards DIN, EN and ISO
  • Data output: RS 232 for printer and USB for PC
