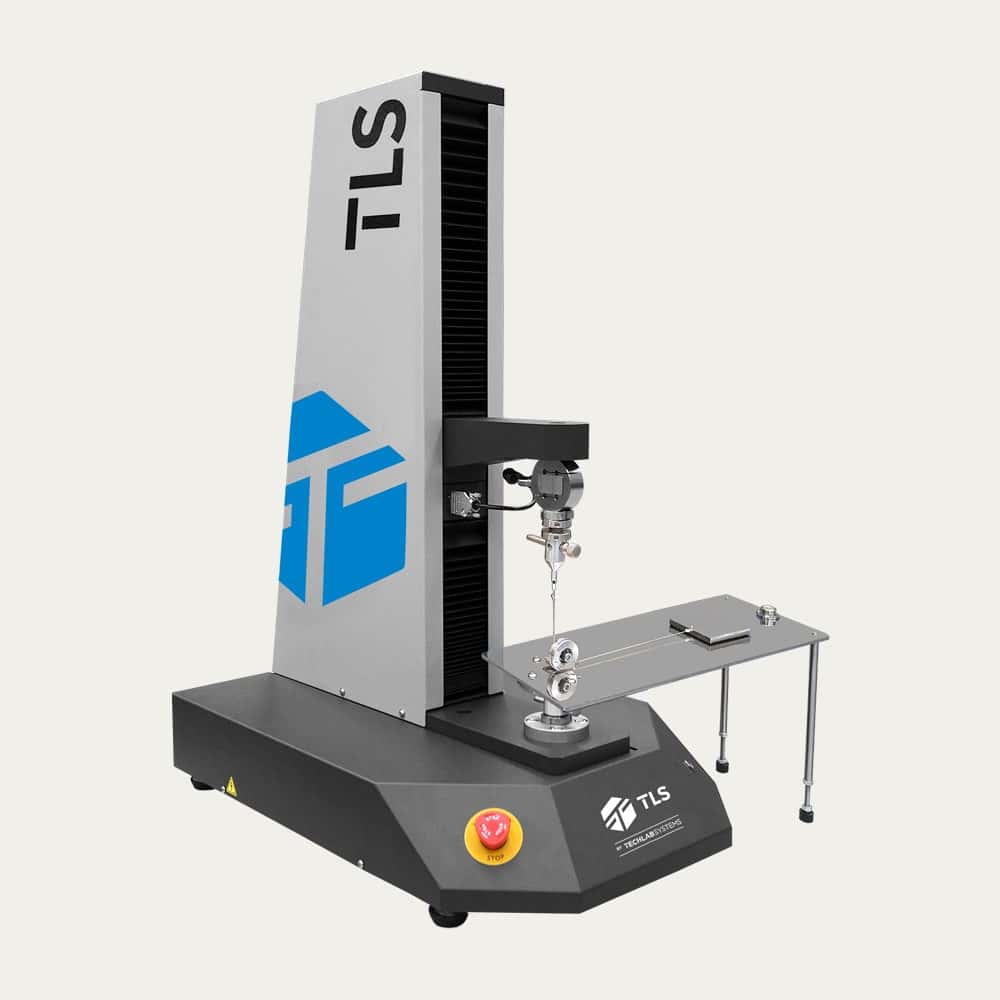

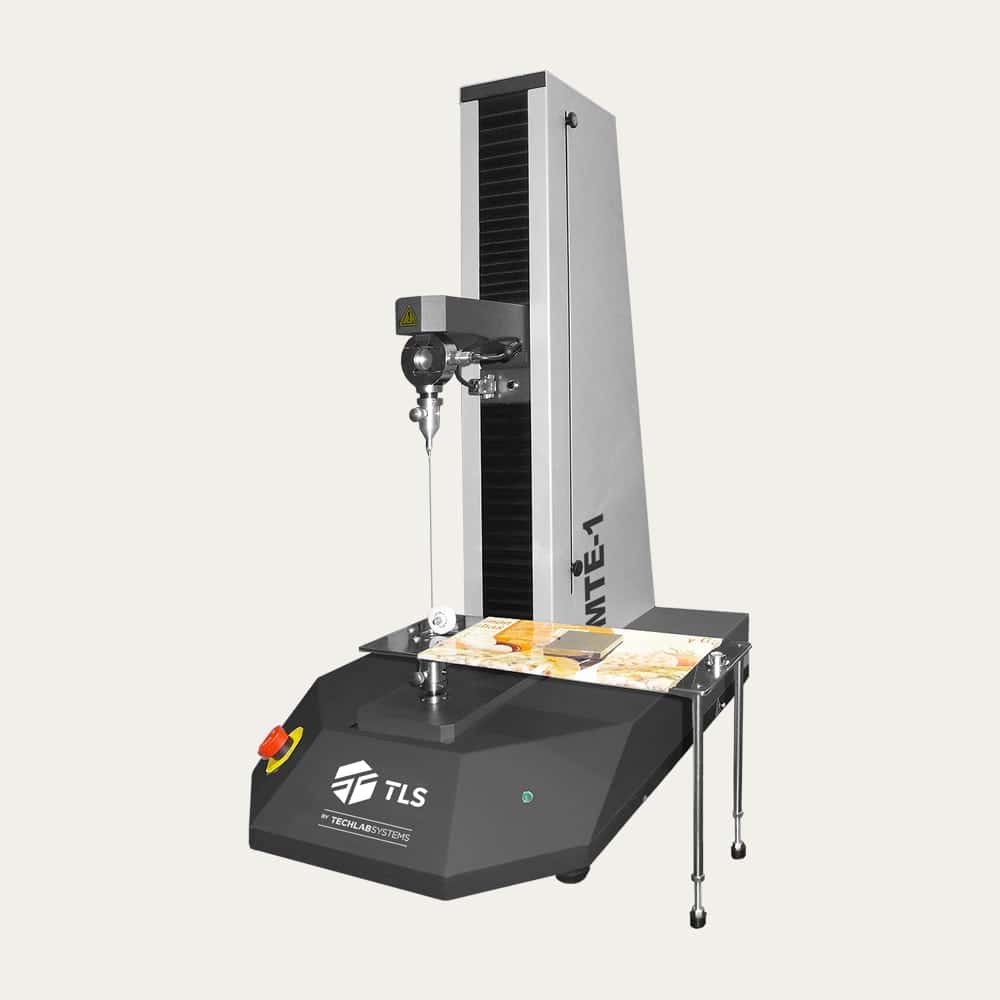

Friction Tester
FT-10
Test equipment to measure the static and kinetic friction on paper, carton, plastic film or similar material.
Industry standard
- ISO 8295
Characteristics
- Maximum force capacity: 1 kN.
- Load cell included in the standard supply: 10N.
- Force measurement accuracy ≤ ± 0.5% (Class 0.5).
- Selectable force units: Kg – N or Lb.
- Standard test speed range 0.5 – 1000 mm /min.
- Test speed accuracy ≤ ± 1%.
- Mobile crossbar travel 500 mm.
- Separation between fixings (adapters) 500 mm.

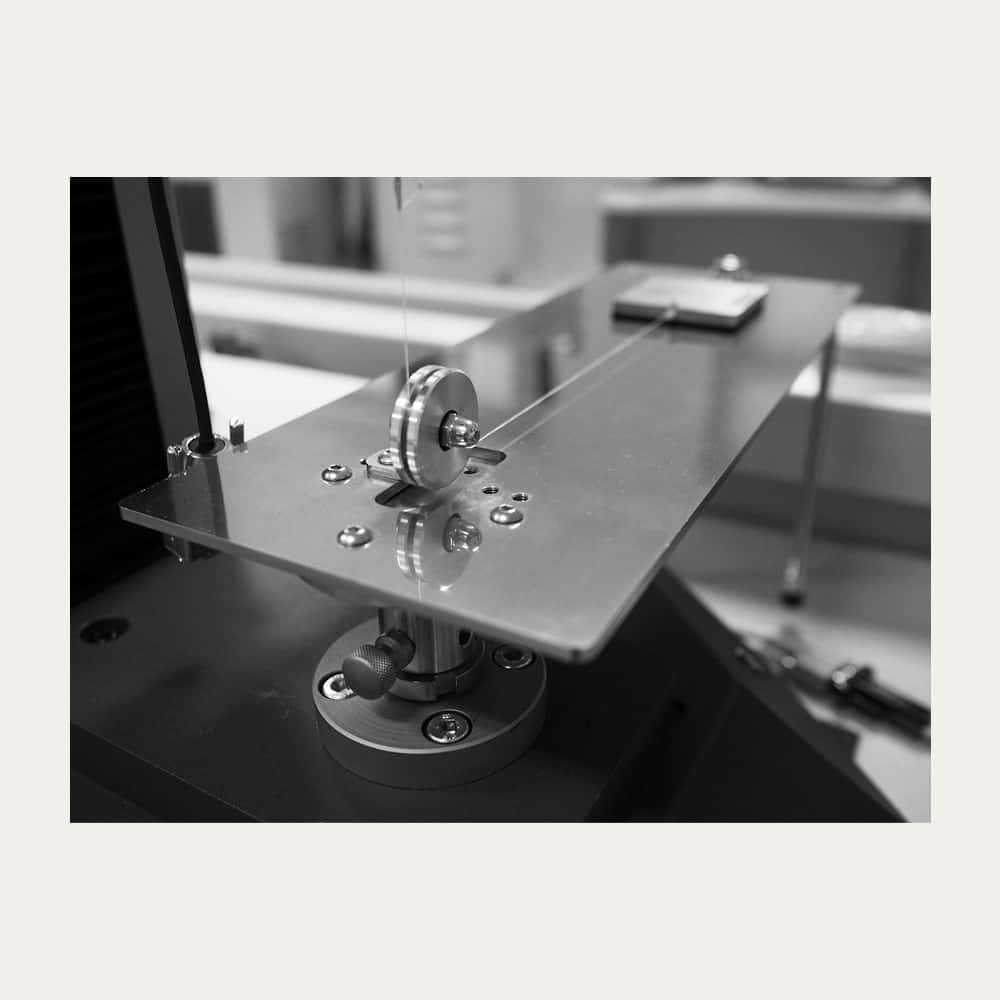

- 150x300mm aluminum sample platform.
- 1 Friction Pad of 200 g according to ASTM D1894 (others to specify).
- RS-232 output interface with converter to USB.
- Testing software with basic statistics to perform friction tests.
- Compatible with the T-LAB Laboratory Management System.
- CE marked.
Technical specifications
Device number | FT-10 |
---|---|
Compressed air connection | No |
PC connection | USB |
Width/diameter | m 0 |
Depth | m 0 |
Height | m 0 |
Weight | kg 0 |
