Rolling Tack Tester

Rolling Tack Tester

Rolling Tack Tester

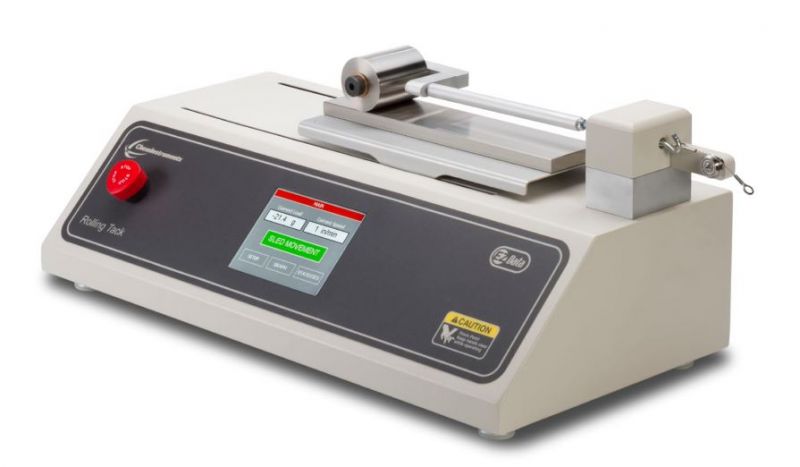

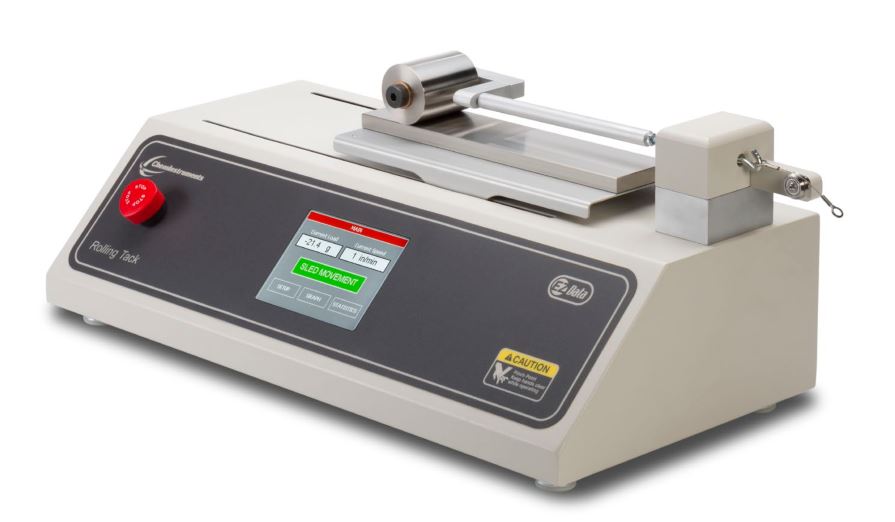

RT-2000

The RT-2000 is designed to meet the need for testing low tack products.  These products can be various adhesive, prepregnated or other materials that exhibit tack like characteristics.

Standard Test Method for Prepreg Tack Using Rolling Resistance.

Request offer Data sheet
  • Rugged construction, capable of withstanding the abuse of the production
  • environment
  • Advanced digital speed control with stepper motor
  • Selectable speeds of 1-24 ipm (3-60 cpm)
  • Speed Selectable in increments of 1” (2cm)
  • Test angle is permanently set for 180° testing
  • 5 pound load cell is included with the machine
  • Unit is supplied with a Roller Assembly with a mass of 1500gr (+/-15gr)
  • The Roller itself has a mass of 1220gr (+/-15gr)
  • Other Size rollers are available
  • Testing Stage is 2.5” (6.35cm) wide and 11”(28cm) Long with a 16 RMS surface finish
  • Samples are applied either directly to the testing stage or with double sided tape
  • Test samples should be at least 6”(15cm)
  • Can run individual tests or up to 7 tests in a batch.
  • Operating temperature range 32°-122° F (0°-50° C)
  • Capable of stand-alone operation with integrated digital touchscreen display
  • Data can be downloaded to EZ Data software for complete data management
  • Universal input voltage from 85-265 VAC (50/60 Hz)
