Handroller

HR

For reliable and fast sample preparation, we have a wide range of hand rollers to complement your PSTC, TLMI, ASTM and FINAT testing of adhesives. The hand rollers are manufactured so that the roller can be easily removed for calibration and replacement. The hand roller frame is made of aluminum and has a Teflon hard coating for easy cleaning and maintenance. Stand feet on the handle extend beyond the circumference of the roll for protected storage of the roll surface. Slots on the handle allow the roller axles to "float" with only the weight of the roller during operation. Certificates can be issued upon request and at additional cost.

Request offer Data sheet

Characteristics

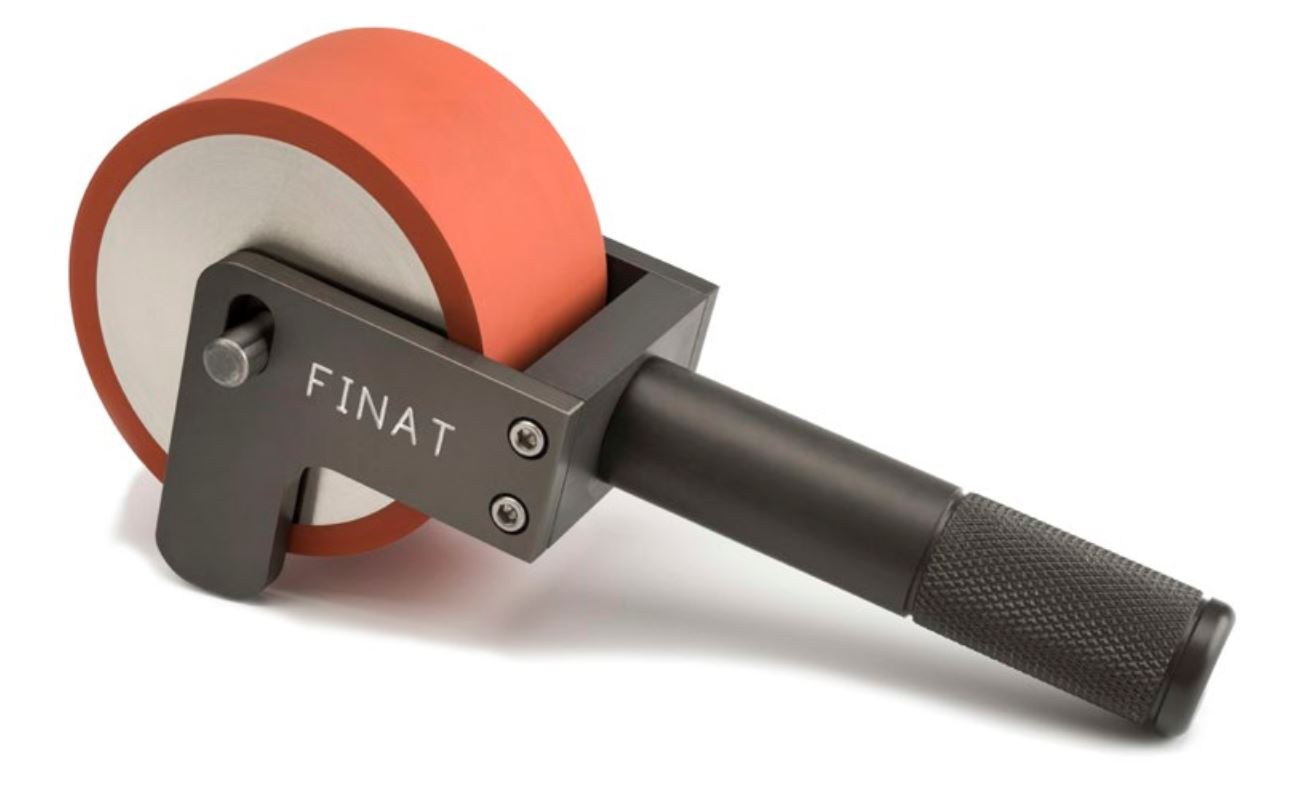

HR-FINAT: 4.4 lb (2 kg) roll, ∅ 3.34" (85 mm), w: 1.97" (50 mm), Shore scale A 80 durometer silicone rubber cover.

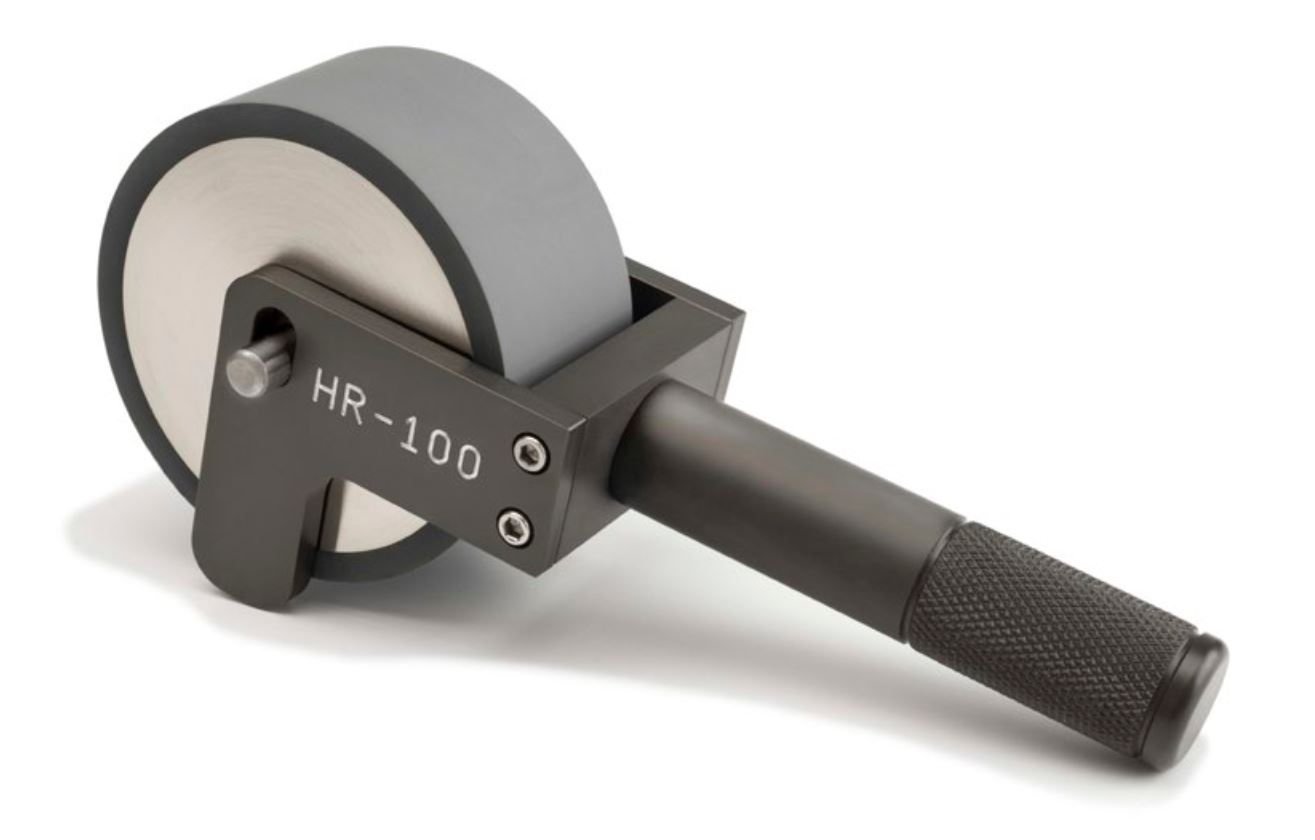

HR-100: 4.5 lb (2045 g) roll, ∅ 3.75" (95 mm), w: 1.75" (45 mm), Shore scale A 80 durometer silicone rubber cover.

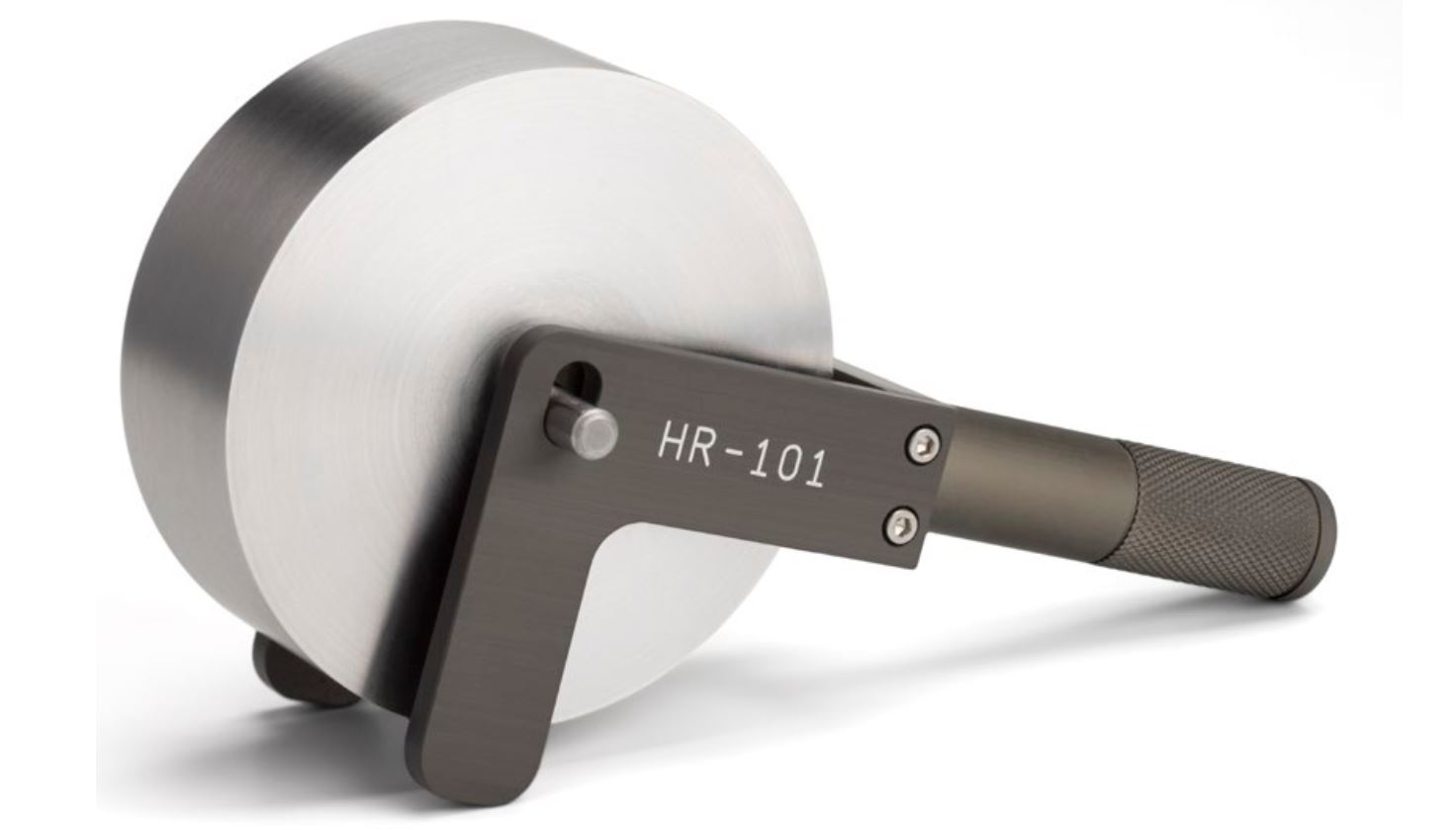

HR-101: 10 lb (4540 g) roller, ∅ 5.00" (127 mm), w: 1.75" (45 mm), solid steel core 8 RMS polished finish.

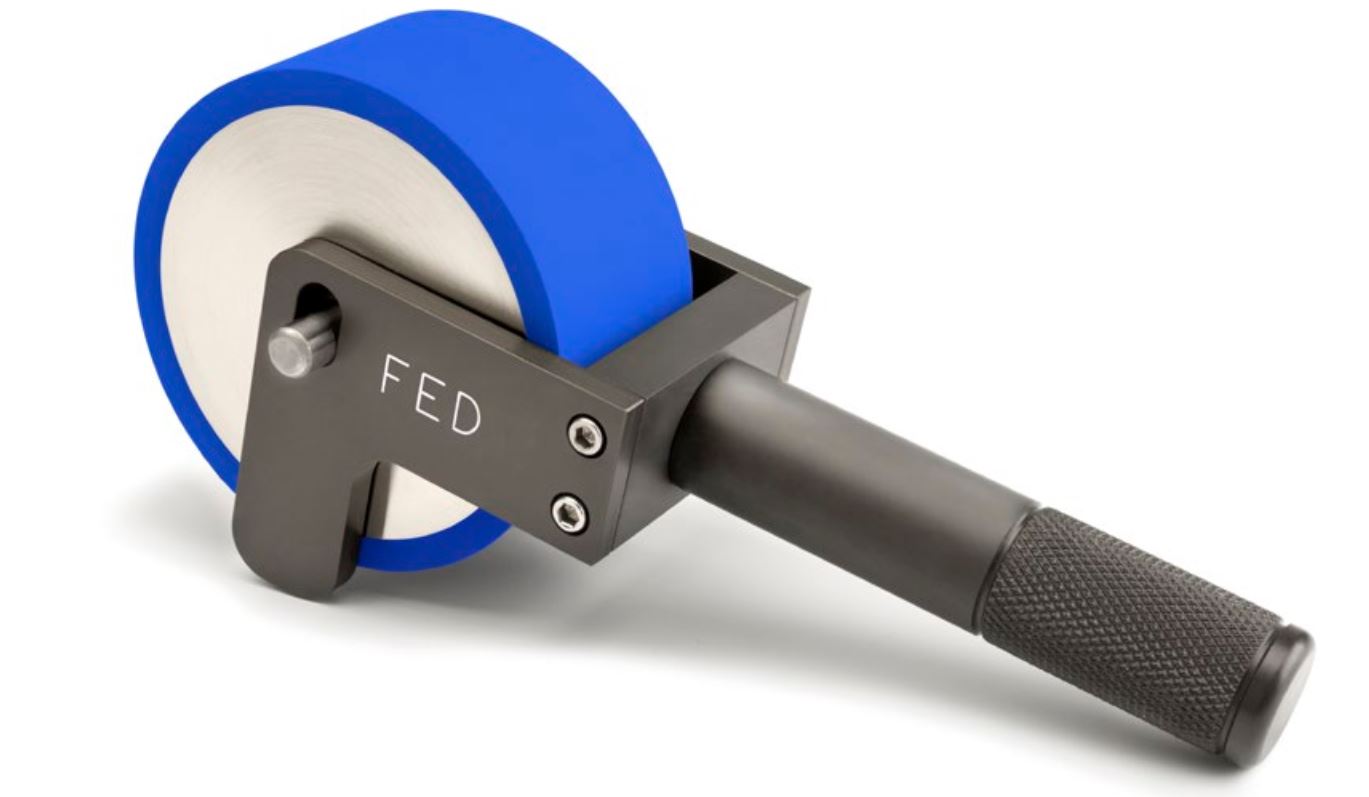

HR-FED: 2045g (4.5 lb) roll, ∅ 3.75" (95 mm), b: 1.75" (45 mm), Shore scale A 75 durometer silicone rubber cover. FED Std 141D
other hand rollers on request

Technical specifications

Device number	HR
Compressed air connection	No
PC connection	No PC connection
Width/diameter	0 m
Depth	0 m
Height	0 m
Weight	0 kg
