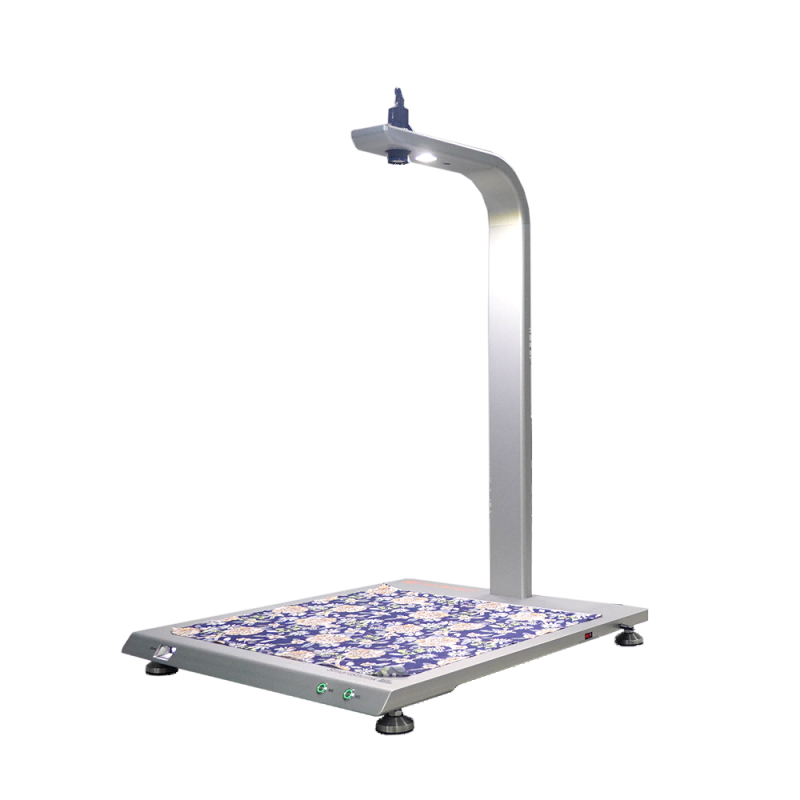

Shrinkage Rate Tester
SRT-100
SmartShrink Shrinkage Rate Tester determines multiple shrinkage rate test results in 5 seconds for fabrics after washing, steaming, and dry-cleaning.

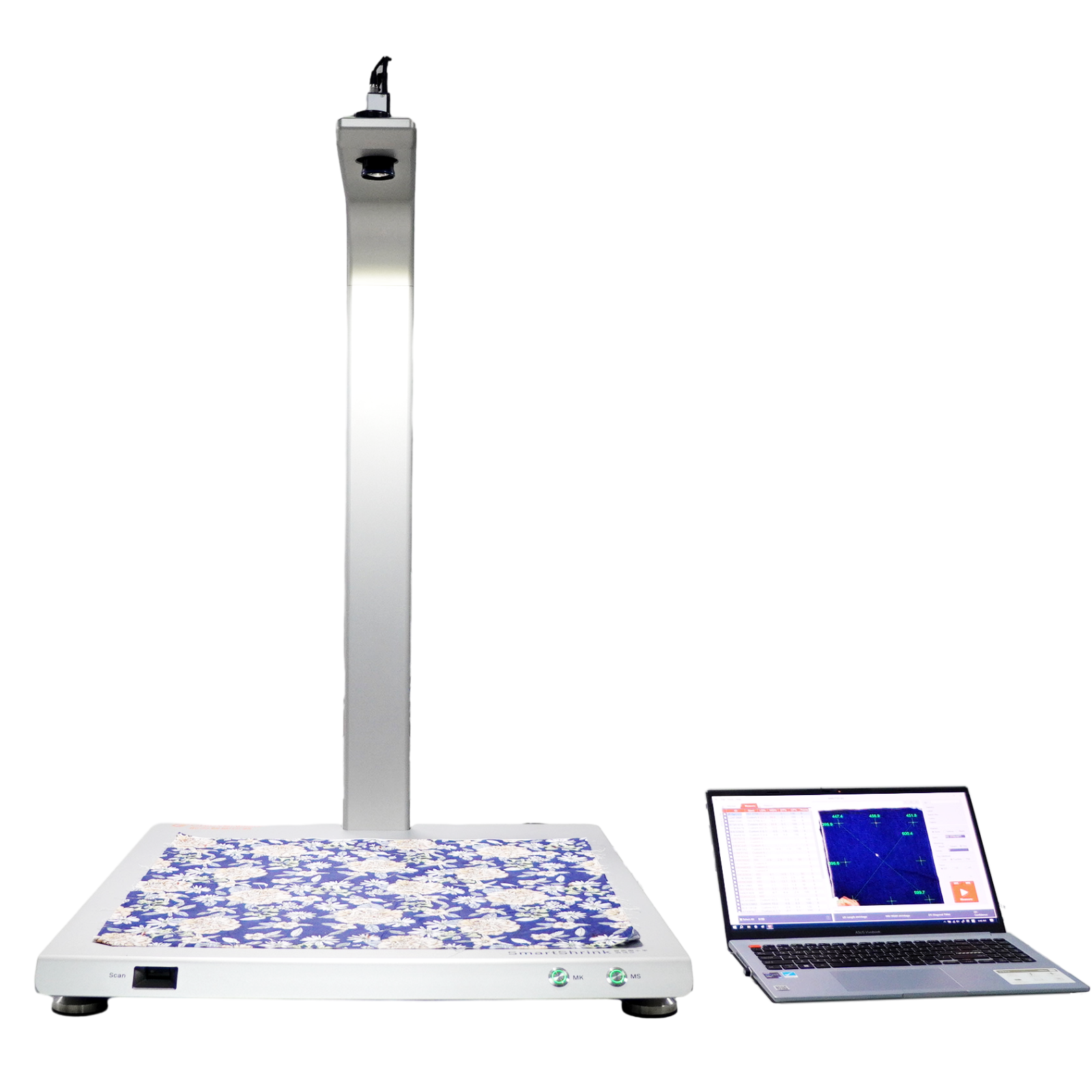

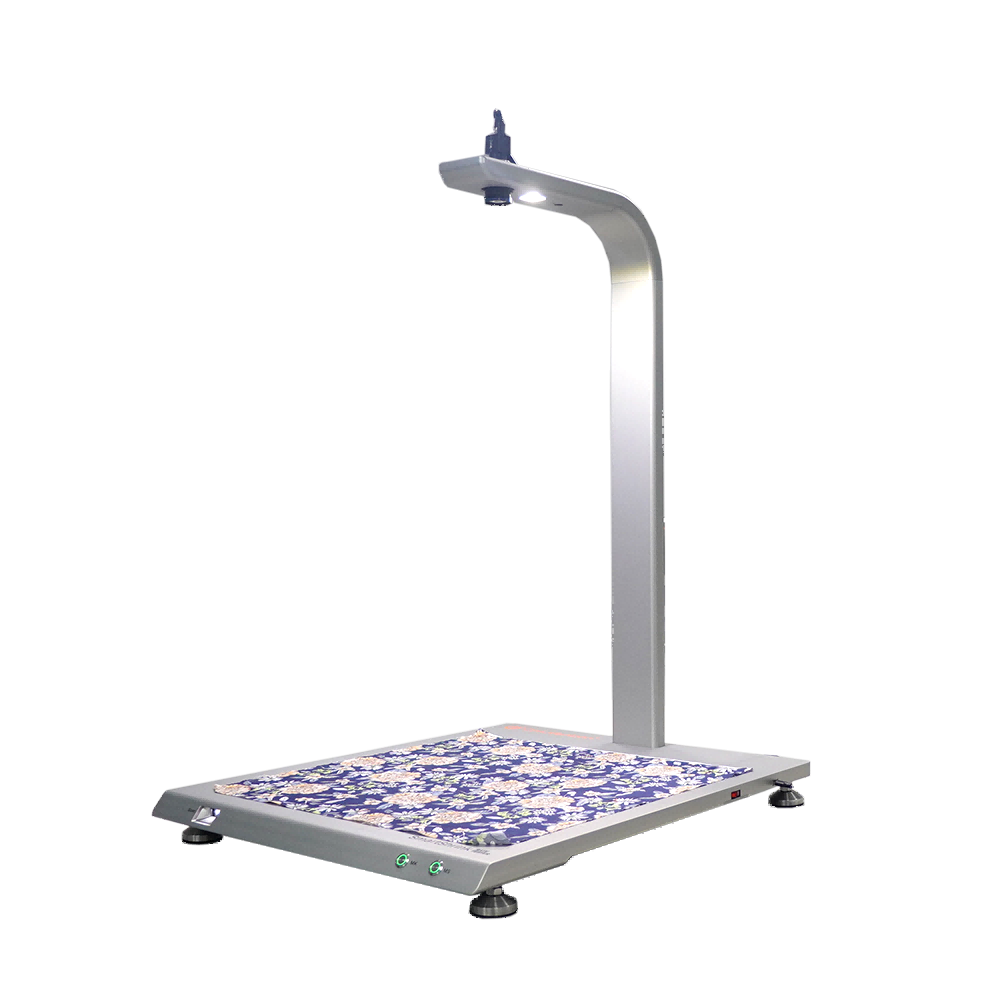

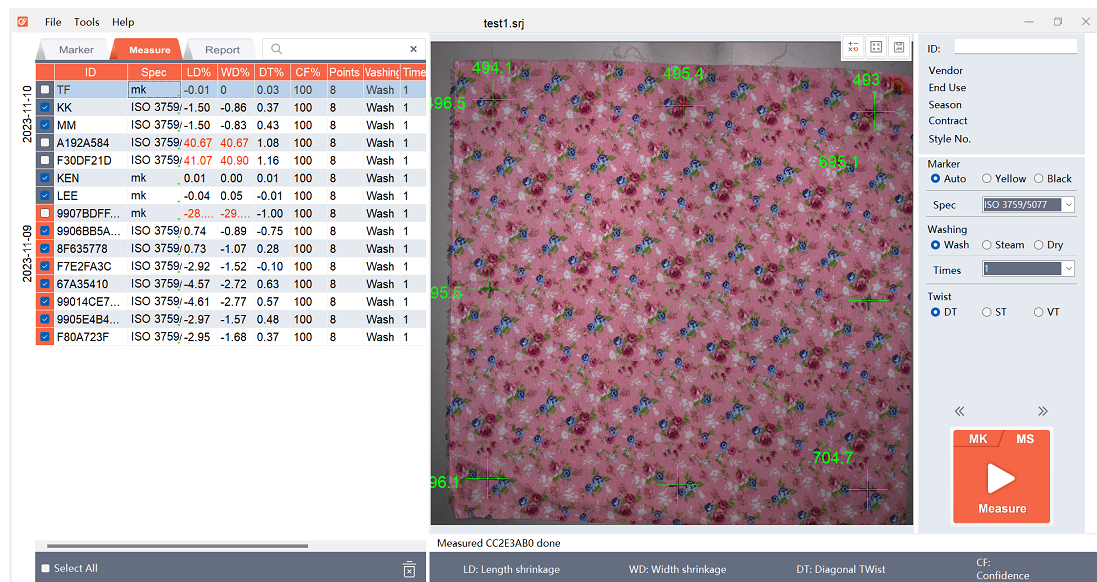

SmartShrink takes a picture of a fabric sample by using a camera equipped on the top, automatically measuring the distances between the marked dots, and calculates the test results by the patented vision inspection algorithm of ChiuVention. The test results will be shared with the IoT-connected SmarTexLab app installed on the computer and smartphone.
Characteristics
- Test mode: automatic test
- Sample test size:
- 200*200mm, 250*250mm, 350*350mm,
- 450*450mm, 460*460mm, 500*500mm,
- 10*10in. 15*15in. 18*18in.
- The sample test size also can be customized.
- A computer is required (optional)
- Operating system: Windows 10/11
Technical specifications
Device number | SRT-100 |
---|---|
Compressed air connection | No |
PC connection | USB |
Width/diameter | 810 cm |
Depth | 690 cm |
Height | 1140 cm |
Weight | 40 kg |
