Glossmeter

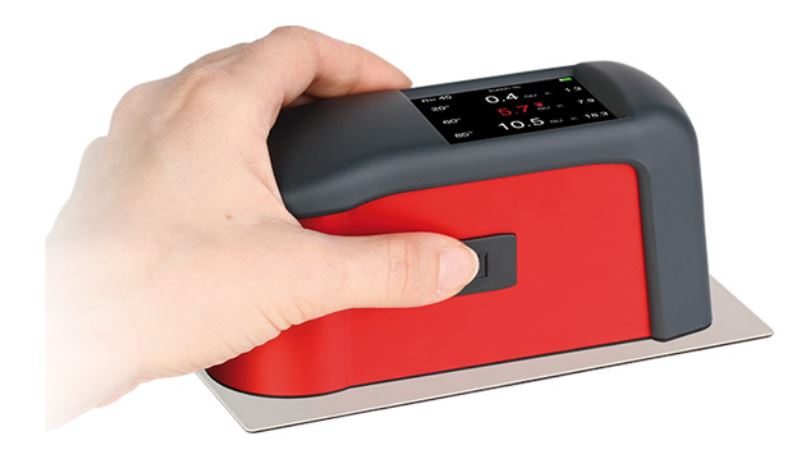

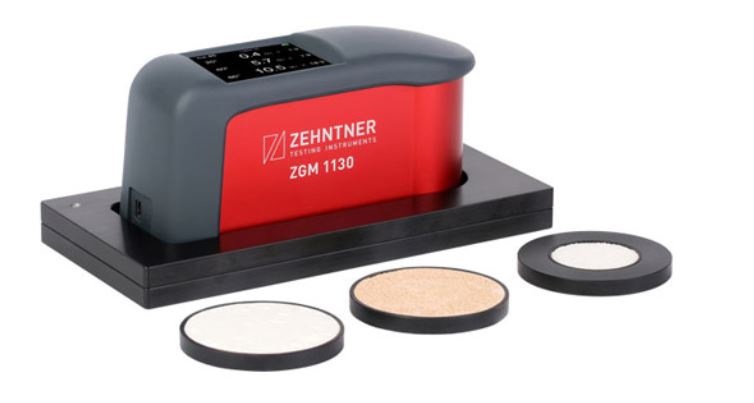

Glossmeter ZGM 1130
Determination of all gloss levels of a wide variety of surfaces:
Coatings, plastics and related materials. High gloss (20°), Medium gloss (60°), Low gloss (85°). Automatic calculation of "reflection haze H" according to ASTM D4039 for two and three angle designs.
Industry standard
- ASTM D523
- astm_d_2457
- din_67530
- ISO 2813
Characteristics
- Stand alone unit
- Measuring and evaluation software "GlossTools
- Touchscreen display: 2,4 inch
- 1 Mio. measurements storable
- Measuring mode: sensor adjustment V(λ)
- Angle measurement: 1-angle: 60° / 2-angle: 20°, 60° and "refelction haze H" / 3-angle: 20°, 60°, 85° and "refelction haze H
- Measuring range: 0 - 2'000 GU
- Measuring accuracy: 0 - 199.9 GU: ± 0.1 % / 200 - 2'000 GU: ± 0.2 %
Technical specifications
Device number | Glossmeter ZGM 1130 |
---|---|
Compressed air connection | No |
PC connection | USB |
Width/diameter | 90 mm |
Depth | 25 mm |
Height | 65 mm |
Weight | 450 g |
